Automatic Yellow Sticky Trap Making Machine with Hot Melt Glue and PP Material for Pest Control
-
Menyoroti
automatic yellow sticky trap machine
,hot melt glue pest control machine
,PP material rat glue trap maker
-
Nama mesinmesin pembuat perangkap gulungan lem serangga
-
Fungsi mahineuntuk pembuatan perangkap gulungan lem serangga
-
Jenis LemLem panas meleleh
-
Bahan perangkaphal
-
Jumlah pelapisanDapat Disesuaikan
-
Alat peleburan lemTermasuk
-
Panel Kontrol<133Pa
-
Jenis lapisan lemlapisan lem satu sisi
-
Kata kunci mesinMesin pembuat Perangkap Lengket Serangga Biru
-
Jenis mesinOtomatis
-
Tempat asalTiongkok (Daratan)
-
Nama merekKSPACK
-
SertifikasiCE ISO
-
Nomor modelHG-818
-
Kuantitas min Order1
-
Harga15000
-
Kemasan rinciankotak kayu olahan
-
Waktu pengiriman20 Hari
-
Syarat-syarat pembayaranT/T, D/P, D/A, Western Union
-
Menyediakan kemampuan30 set
Automatic Yellow Sticky Trap Making Machine with Hot Melt Glue and PP Material for Pest Control

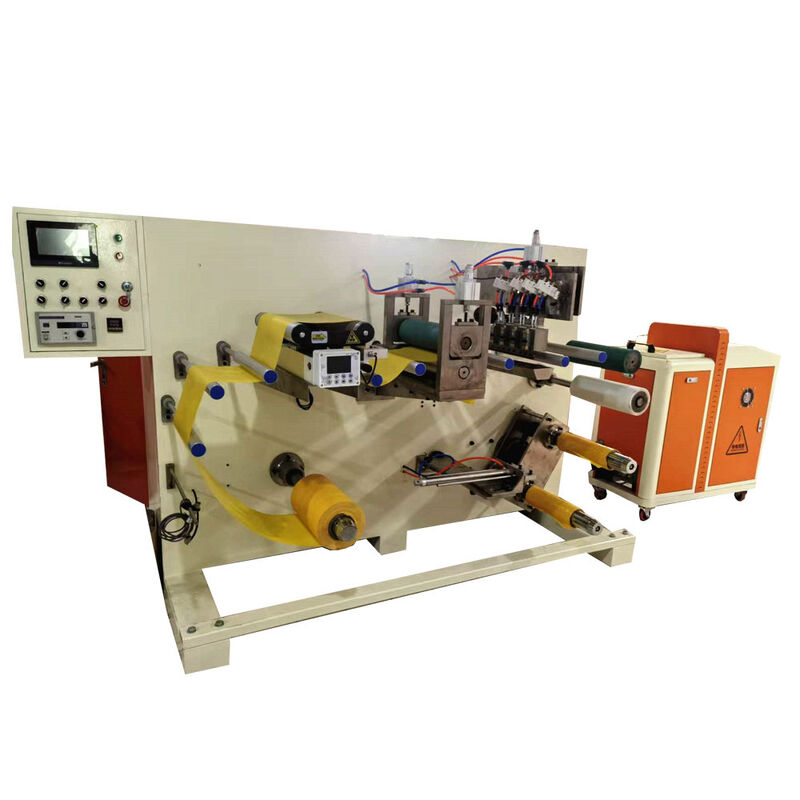

Automatic Yellow Sticky Trap Making Machine
Complete insect glue trap production line for manufacturing pest control traps with automated continuous operation using hot melt glue and PP material.
Production Process
The insect sticky board production process begins with roll material being straightened by the guide rail, then entering the gluing station for adhesive application. The material is conveyed to the winding shaft via conveyor belt for winding. When the winding length reaches the preset value, the material shaft automatically switches (cutting and feeding material). The equipment operates continuously without stopping, requiring operators only to collect finished products and replace paper cores.
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Power | 21.75 kW |
| Maximum Unwinding Diameter | 800 mm |
| Maximum Cardboard Width | 300 mm |
| Paper Tube Inner Diameter | 76 mm |
| Effective Maximum Glue Coating Width | 290 mm |
| Glue Coating Uniformity | ±5% |
| Production Speed | 0-75 m/min |
| Rewinding Edge Neatness | ±2 mm |
| Coating Basis Weight Range | 20-80 g/m² |
| Air Compressor | 5-7 kgf/cm² |
| Power Supply | AC380V |
Equipment Features
- Continuous operation without stopping
- Automatic material switching and feeding
- Precise glue coating control
- High production efficiency
- Suitable for yellow and blue insect sticky traps
- Minimal operator intervention required
